Key/Fill ratios and scene composition using false colors

www.videomaker.com/article/c03/18984-how-to-calculate-contrast-ratios-for-more-professional-lighting-setups





To measure the contrast ratio you will need a light meter. The process starts with you measuring the main source of light, or the key light.



Get a reading from the brightest area on the face of your subject. Then, measure the area lit by the secondary light, or fill light. To make sense of what you have just measured you have to understand that the information you have just gathered is in F-stops, a measure of light. With each additional F-stop, for example going one stop from f/1.4 to f/2.0, you create a doubling of light. The reverse is also true; moving one stop from f/8.0 to f/5.6 results in a halving of the light.



Let’s say you grabbed a measurement from your key light of f/8.0. Then, when you measured your fill light area, you get a reading of f/4.0. This will lead you to a contrast ratio of 4:1 because there are two stops between f/4.0 and f/8.0 and each stop doubles the amount of light. In other words, two stops x twice the light per stop = four times as much light at f/8.0 than at f/4.0.



theslantedlens.com/2017/lighting-ratios-photo-video/



Examples in the post







What Can’t Ratios Tell You?

Ratios are great but they don’t solve all the challenges of a lighting set up for a DP. Ratios help with the mood but there are a number of other factors that need to be considered as well.

1. Type of Lighting:

Soft light vs. Hard Light.  Ratios can’t help you determine whether to use soft light or hard light. You have to know what the differences are and when to employ them.

2. Direction of Lighting

Ratios can’t help you determine where the Key light should be coming from.

3. Color

Ratios are no good for color.  You have to develop your project and understand how the color temperature of lights impacts mood and feeling.

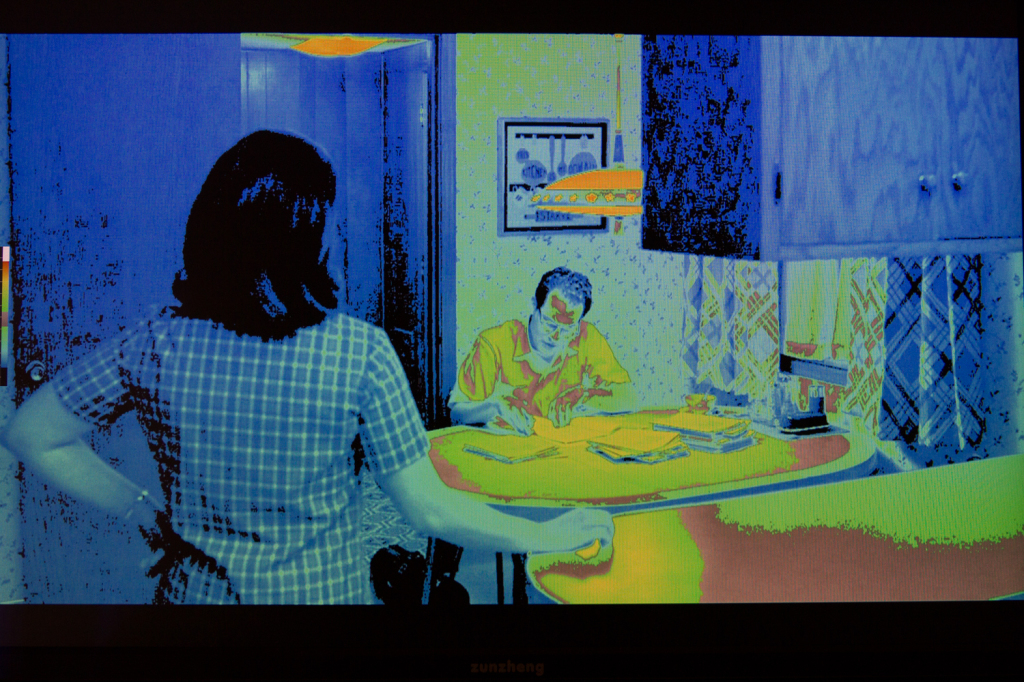

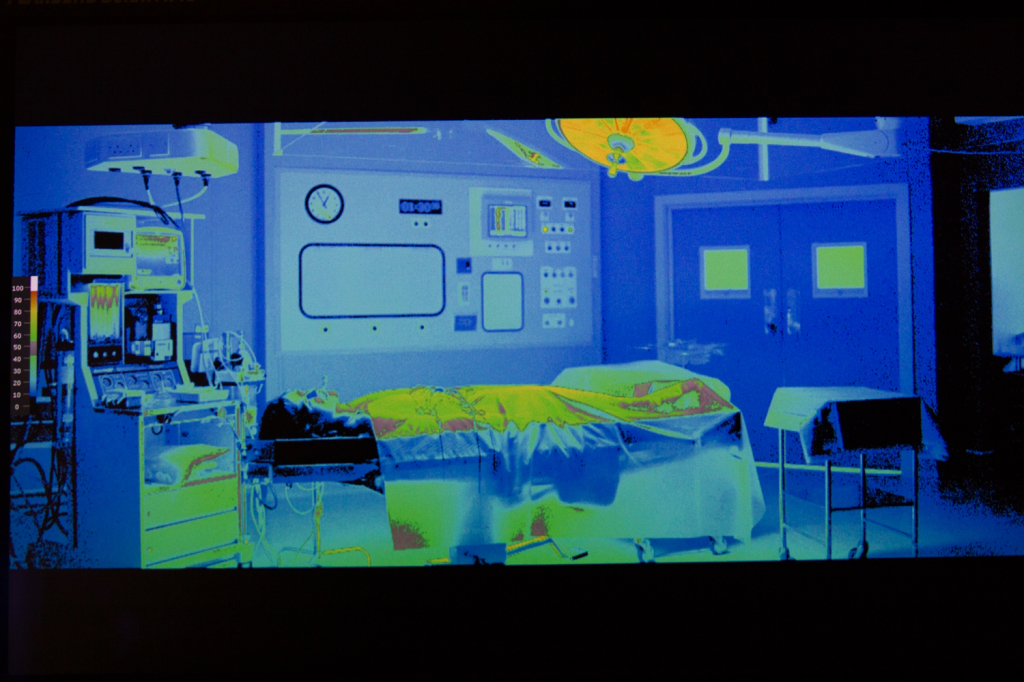

To get the most out of the images below you have to know what you are looking at. The FSI False Color is user adjustable (one of the reasons it is so powerful) and they way I have set it up reads like this.



RED = 3 Stops Over
Yellow = 2 Stops Over
Light Green = 1 Stop Over
Grey = Key
Teal = 1 Stop Under
Light Blue = 2 Stops Under
Dark Blue = 3 Stops Under
Black = 4 Stops Under





Replicating the fake color process through Foundry Nuke:
